THE EVOLUTION CONTINUES
THE H1N
JUST PRESS RECORD
Creators everywhere are using Zoom Handy Recorders to capture sound
and sample audio like never before.

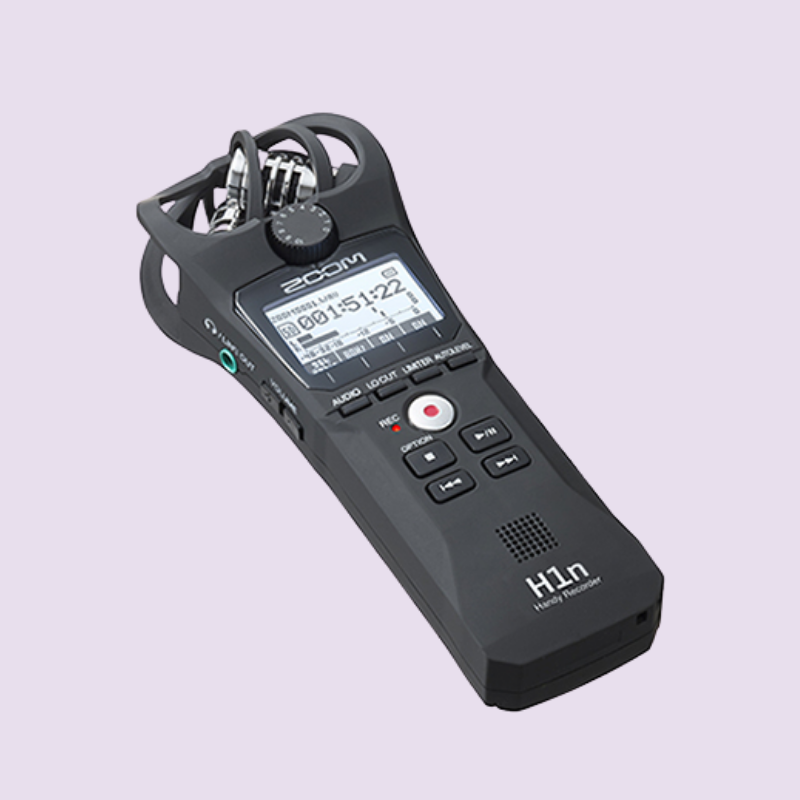

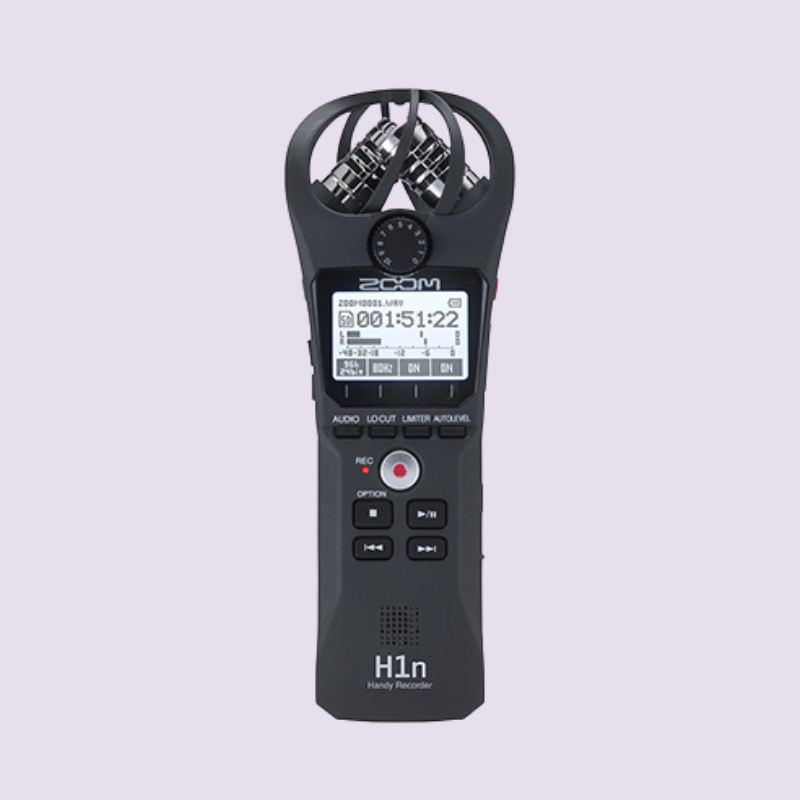

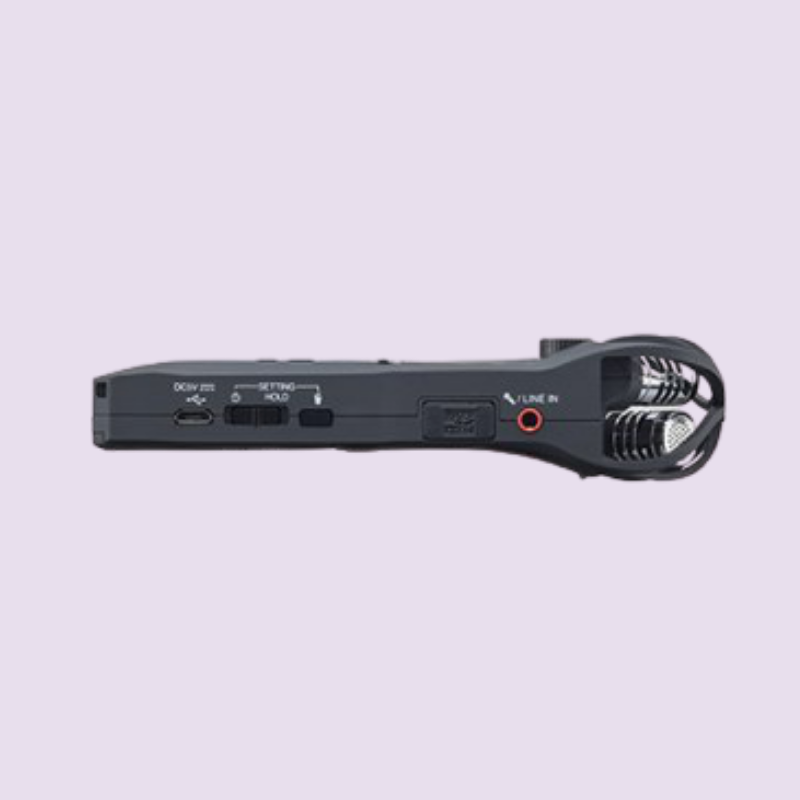

The new H1n is the ultimate take-anywhere recorder for every creator’s gear bag.
What’s included with the H1n
- 2 AAA Batteries
- Steinberg Cubase and WaveLab LE
- Quick Start Guide
Optional APH-1n Accessory Pack includes
- Windscreen
- AD-17 AC adapter
- USB cable
- Tripod stand
- Padded-shell case
- MA-2 mic stand adapter
Optional Accessories available separately
- WSU-1 universal hairy windscreen
- HS-1 hot shoe mount
- MA-2 tripod to mic stand adapter
- AD-17 AC adapter
MEDIA
DOCUMENTS
SOFTWARE
SPECIFICATIONS
| Simultaneous playback tracks: | 2 |
|---|---|
| Simultaneous recording tracks: | 2 |
| Functions: | Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing |
| Recording formats: | WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit |
| A/D conversion: | 24-bit, 128x oversampling |
| D/A conversion: | 24-bit, 128x oversampling |
| Signal processing: | 32-bit |
| Recording media: | microSD/microSDHC cards (Class 4 or higher, up to 32 GB |
| Display: | 1.25″ monochrome LCD (96 × 64) |
| Built-in stereo mic: | Unidirectional condenser, 90° XY stereo format Gain: -∞ dB to +39 dB Maximum sound pressure level: 120 dB SPL |
| Inputs: | 1/8″ stereo phone jack Rated input level: -∞ dB to -39 dBm Input impedance: 2 kΩ Plug-in power supported (2.5 V) |
| Built-in speaker: | Built-in 500 mW mono speaker Output impedance: 8 Ω |
| Outputs: | 1/8″ stereo phone jack (combined line/headphones) Rated output level: 20 mW + 20 mW into 32Ω load Output impedance: 10 kΩ or more |
| USB: | Micro USB port Mass storage class operation: USB 2.0 high speed Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out Transfer method: asynchronous |
| Power requirements: | 2 AAA batteries (alkaline, nickel-metal hydride rechargeable, or lithium) AC adapter (ZOOM AD-17): DC 5V/1A USB bus power |
| Battery life (alkaline batteries): | Approximately 10 hours (continuous recording time using built-in mic, 44.1 kHz/16-bit) |
| Dimensions: | 1.9 in (W) x 5.4 in (D) x 1.2 in (H) 50 mm (W) × 137.5 mm (D) × 32 mm (H) |
| Weight: | 0.13 lbs / 60 g (without batteries) |
